Factory Directly Supply 3 in 1 Busbar Machine For Copper Busbar

Factory Directly Supply 3 in 1 Busbar Machine For Copper Busbar
Factory Directly Supply 3 in 1 Busbar Machine For Copper Busbar
Factory Directly Supply 3 in 1 Busbar Machine For Copper Busbar
Factory Directly Supply 3 in 1 Busbar Machine For Copper Busbar
Factory Directly Supply 3 in 1 Busbar Machine For Copper Busbar

Factory Directly Supply 3 in 1 Busbar Machine For Copper Busbar

Desan Busbar processing machine have three different kinds of work stations which can help you to cutting,bending,punching the busbar easily. We are factory directly supply which means we can promise our machines' quality and price. Just feel free to chose us. Your won't be regret.

إرسال التحقيق

الوصف

hydraulic busbar punching machine

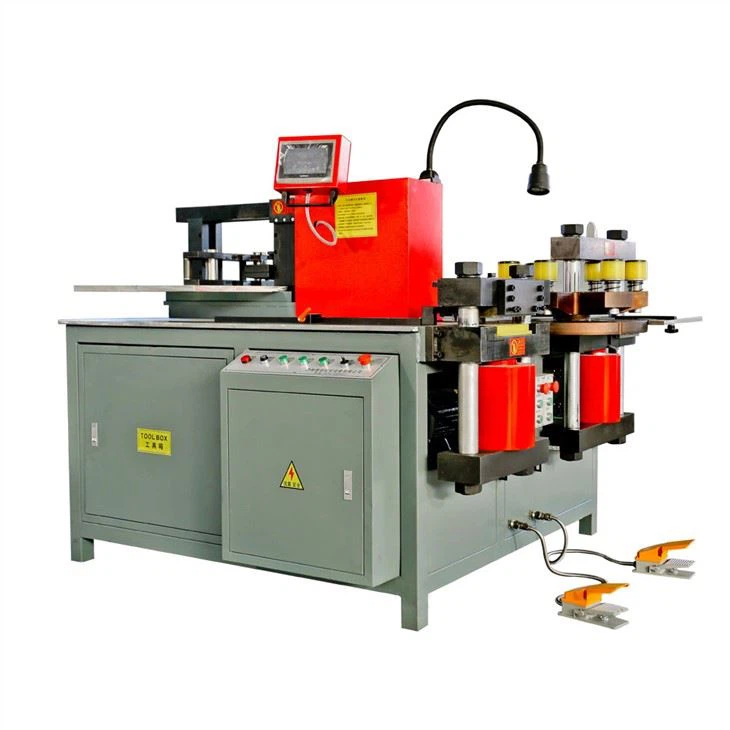

3 in 1 Busbar Processing Machine

Function	Item	DSMX-503ESK-B
Punching	Punching Range	ф4.3-ф36㎜
	Punching Force	500KN
	Max Width	260mm
	Max Thickness	16mm
Cutting	Cutting Force	800KN
	Max Width	260mm
	Max Thickness	16mm
Bending	Bending Force	500KN
	Max Width	260mm
	Max Thickness	16mm
Out Dimension	mm	192515601490mm
Weight	kg	1950
Motor Power	kw	35.5
About CNC	We use Siemens PLC control which you can just enter the angle. The bending precision is ±1 degree and repeat bending precision ±0.5 degree .Three stations can be work at the same time. You also can only enter item's height ad width to produce the item you need.(as Z type blending)

Punching Station

Different kinds of turret can help you to exchange the punching stations easily. Just turn the turret then you can exchange your punching dies.

Cutting Station

Cutting station has very sharp scissors can help you to cut the copper easily. Without any burr and waste. It can make sure that your workpiece is beautiful and clean.

Bending Station

Do you still have problem with bending? Don't worry about that. With our PLC control it can help you to bend the copper easily and quick. Just try our machine. It won't let you down.
